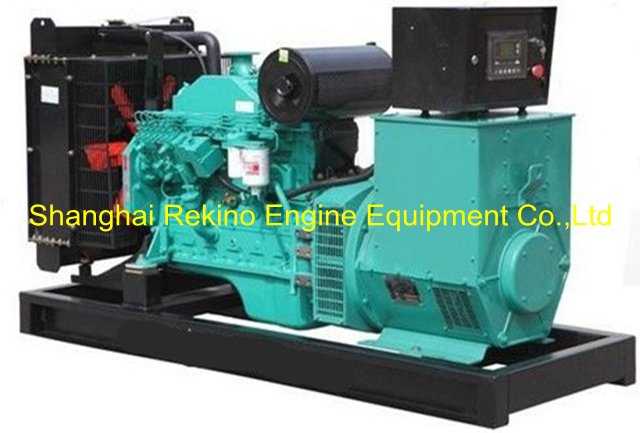

Cummins 90KW 112.5KVA 50HZ Land diesel generator genset (6BTA5.9-G2 )

Availability:
Quantity:
Inquire Add to Basket

  • 90GF

  • Cummins

Cummins 90KW  112.5KVA  50HZ  Land diesel generator genset  (6BTA5.9-G2 )


Generator   model90GF
Rated power90KW
Standby   power 99KW
Generator   capacity112.5KVA
Factor0.8 lag
Frequency50HZ
Voltage400/230
Current162A
Phase /   connection3 phase 4 wire
Generator   Weight1140KG
Size 2200*800*1300（mm）
Engine Cummins 6BTA5.9-G2
Rated power106KW
Standby   power 116KW
Bore*stroke102*120 (mm)
Speed1500RPM
Alternator Marathon MP-104-4
ExcitationBrushless &   self-excited
Insulation H
ProtectionIP22/23
optional   alternator brand Stamford, Leroy   Somer, Farady,etc,
