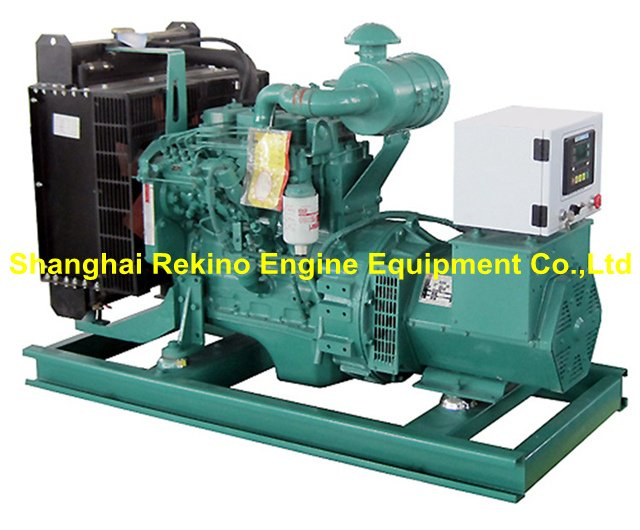

Cummins 24KW 30KVA 60HZ land diesel generator genset (4B3.9-G2 )

Availability:
Quantity:
Inquire Add to Basket

  • 24GF
  • Cummins

Cummins 24KW 30KVA 60HZ land diesel generator genset  (4B3.9-G2 )


Type Cummins Land  diesel  generator genset
Generator   model24GF
Rated power24KW
Standby   power 26.4KW
Generator   capacity30KVA
Factor0.8 lag
Frequency60HZ
Voltage480/240V
Current43A
Phase /   connection3 phase 4 wire
Generator   Weight940KG
Size 2200×940×1460（mm）
Engine Cummins 4B3.9-G2
Rated power30KW
Standby   power 33KW
Bore*stroke102*120 (mm)
Speed1800RPM
Alternator Marathon GM-24-4
ExcitationBrushless &   self-excited
Insulation H
ProtectionIP22/23
optional   alternator brand Stamford, Leroy   Somer, Farady,etc,
