CCEC Cummins KTA38-M2 KTA38-M1200 (1200HP 1800RPM ) marine propulsion diesel engine motor

Availability:
Quantity:
Inquire Add to Basket

  • KTA38-M2 KTA38-M1200

  • CCEC Cummins

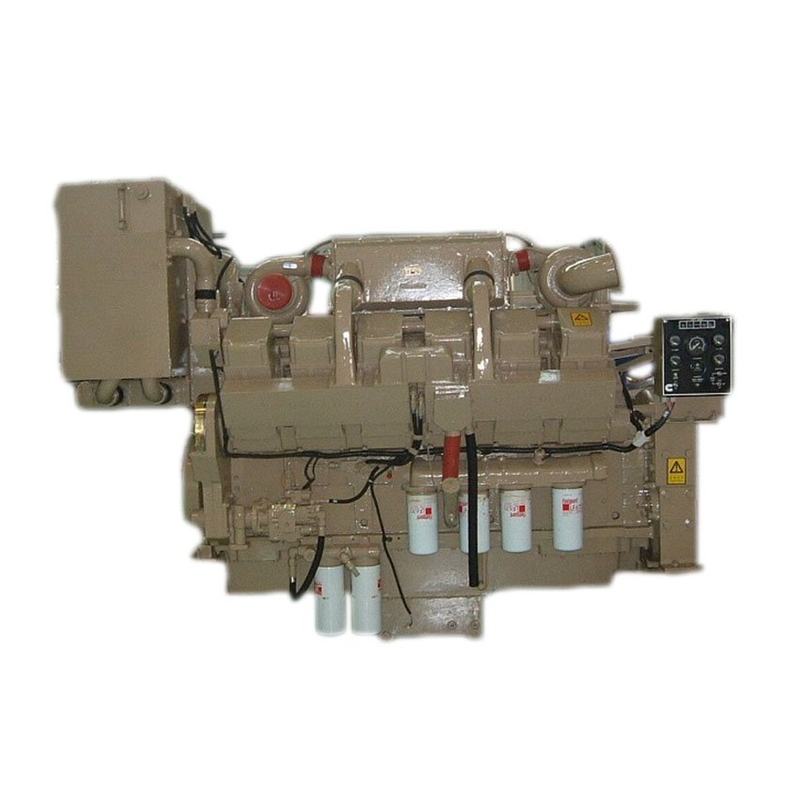

CCEC Cummins KTA38-M2  KTA38-M1200  (1200HP 1800RPM ) marine propulsion diesel engine motor


Engine   modelKTA38-M2   (KTA38-M1200)
StyleMarine propulsion diesel engine        (Main engine)
TypeV type, 12-Cylinder,   4-Stroke, 4-Valve
AspirationTurbocharged
Bore x stroke159x159mm
Displacement38 L
Compression   Ratio13.8
Rating typeCON
Power / Speed895 KW (1200HP)   /1800RPM
RotationCounter clockwise   facing flywheel
Fuel   Consumption202g/kw.h
Fuel systemPT
Dimension2400*1800*2000mm
Dry weight3880KG
EmissionCCS +IMO
Matching   gearbox  AdvanceHC600,HCD600A,HCT600A,etc
Matching   gearbox  FADAJ600A,JD600A,etc
ApplicationFishing boat,   Turboat, Cargo,etc
