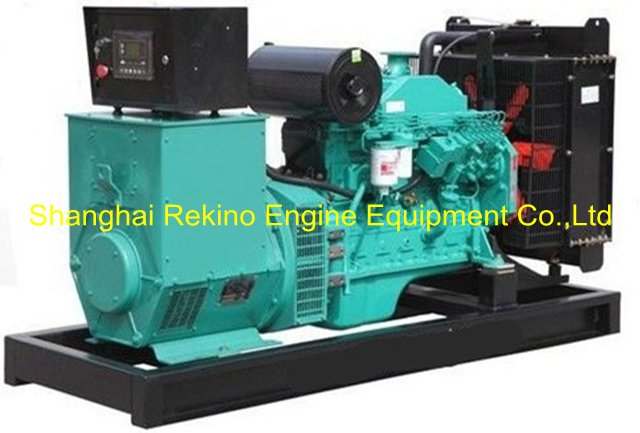

Cummins 100KW 125KVA 50HZ Land diesel generator genset (6BTA5.9-G3)
Cummins 100KW 125KVA 50HZ Land diesel generator genset (6BTA5.9-G3)
Share to:

Cummins 100KW 125KVA 50HZ Land diesel generator genset (6BTA5.9-G3)

Quantity:
Inquire Add to Basket

  • 100GF
  • Cummins

Cummins 100KW  125KVA  50HZ  Land diesel generator genset  (6BTA5.9-G3)


Generator   model100GF
Rated power100KW
Standby   power 110KW
Generator   capacity125KVA
Factor0.8 lag
Frequency50HZ
Voltage400/230
Current180A
Phase /   connection3 phase 4 wire
Generator   Weight1200KG
Size 2250*830*1350（mm）
Engine Cummins 6BTA5.9-G3
Rated power120KW
Standby   power 132KW
Bore*stroke102*120 (mm)
Speed1500RPM
Alternator Marathon MP-104-4
ExcitationBrushless &   self-excited
Insulation H
ProtectionIP22/23
optional   alternator brand Stamford, Leroy   Somer, Farady,etc,
