6CTAA8.3-C195
DCEC Cummins

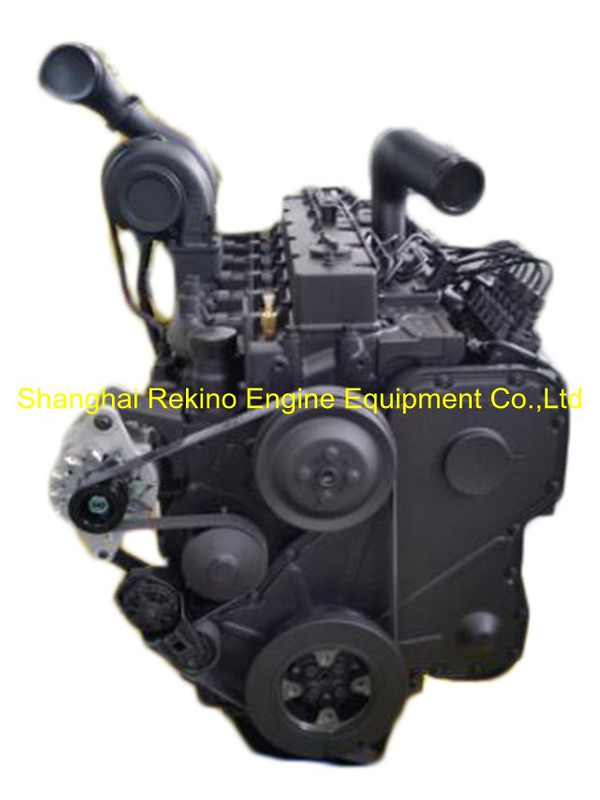

DCEC Cummins 6CTAA8.3-C195 construction diesel engines motores 195HP 1950RPM
| Engine model | 6CTAA8.3-C195 (195HP 1950RPM) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Intake system | Turbocharged and Air to air aftercooled |
| Bore X Stroke | 114x135mm |
| Displacement | 8.3L |
| Governor ratio | 5% |
| Rotation | Clocewise (face to flywheel) |
| Rated power | 146KW /1950RPM (195HP /1950RPM) |
| Max torque | 960N.m/1300RPM |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 223g/kw.h |
| Net Weight | 604KG |
| Gross weight | 700KG |
| Overall Diemension(L*W*H) | 1240mm*780mm*1185mm |
| Package size(L*W*H) | 1450mm*900mm*1350mm |
| Max.Continuous Running Altitude | 2000m |
| Emission | China Nation II,Euro II |
| Application | Motor grader,Wheel loader,Paver,Air compressor,etc |
