6CTA8.3-C230
DCEC Cummins

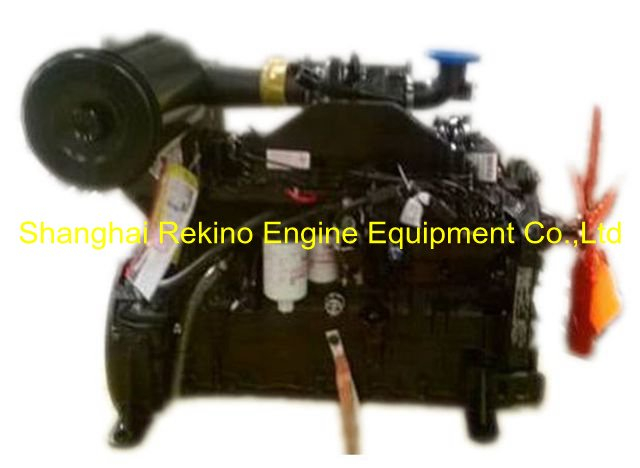

DCEC Cummins 6CTA8.3-C230 construciton diesel engine motor 230HP 1850-2200RPM
| Engine model | 6CTA8.3-C230 (230HP 1850RPM/2200RPM) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and Aftercooled |
| Bore X Stroke | 114x135mm |
| Displacement | 8.3L |
| Compression ratio | 17.3:1 |
| Fuel system | PW2000 injection pump + RSV governor |
| Governor ratio | 5% |
| Rotation | Clocewise (face to flywheel) |
| Rated power | 172KW/2200RPM (230HP/2200RPM) 170KW/1850RPM (230HP/1850RPM) |
| Max torque | 1000N.m/1500RPM 1000N.m/1400RPM |
| Idle speed | 900RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 224g/kw.h |
| Net Weight | 627KG |
| Gross weight | 700KG |
| Overall Diemension(L*W*H) | 1560mm*900mm*1400mm |
| Package size(L*W*H) | 1700mm*1100mm*1600mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silecner,radiator,control panel,etc |
| Application | Hydraulic excavator,Wheel loader,Roller,Motor grader,Paver,Air compressor,etc |
