4BTAA3.9-C125
DCEC Cummins

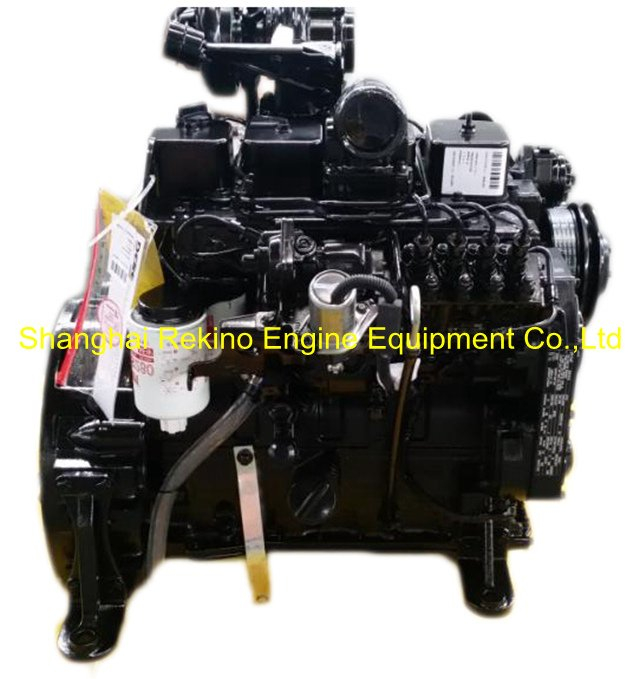

DCEC Cummins 4BTAA3.9-C125 Construction diesel engine motor 125HP
| Engine model | 4BTAA3.9-C125 (2200RPM) |
| Engine style | Cummins construction diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Intake system | Turbocharged and Air to air aftercooled |
| Bore X Stroke | 102x120mm |
| Displacement | 3.9L |
| Compression ratio | 17.3:1 |
| Fuel system | PW2000 injection pump + RSV governor |
| Governor ratio | 5% |
| Rotation | Clocewise (face to flywheel) |
| Rated power | 93KW/2200RPM (125HP/2200RPM) |
| Max torque | 480N.m/1400RPM |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 208g/kw.h |
| Net Weight | 388KG |
| Gross weight | 540KG |
| Overall Diemension(L*W*H) | 867mm*544mm*988mm |
| Package size(L*W*H) | 1110mm*910mm*1350mm |
| Max.Continuous Running Altitude | 2000m |
| Emission | China Nation II, Euro II |
| Application | Hydraulic Excavator,Wheel loader,Roller,Motor garder,etc |
