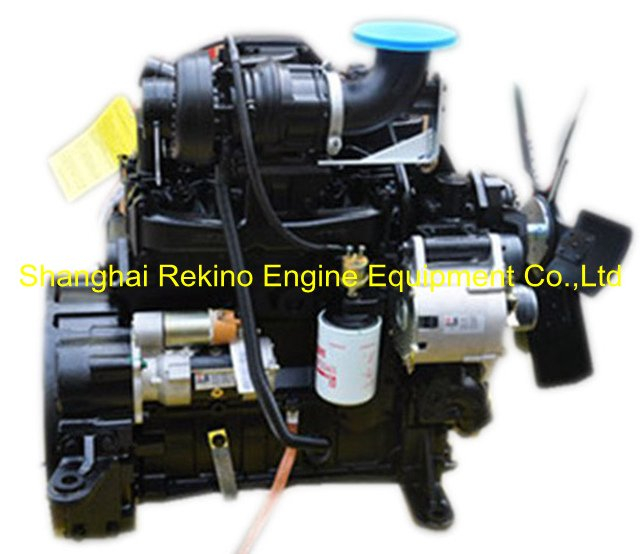

DCEC Cummins 4BTA3.9-C100 Construction diesel engine motor 100HP
| Engine model | 4BTA3.9-C100 (2200RPM) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Intake system | Turbocharged and aftercooled |
| Bore X Stroke | 102x120mm |
| Displacement | 3.9L |
| Compression ratio | 17.3:1 |
| Fuel system | BYC PB4 type injection pump + RSV governor |
| Governor ratio | 5% |
| Rotation | Clocewise (face to flywheel) |
| Rated power | 74KW/2200RPM (100HP/2200RPM) |
| Max torque | 410N.m/1500RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 388KG |
| Gross weight | 540KG |
| Overall Diemension(L*W*H) | 867mm*544mm*988mm |
| Package size(L*W*H) | 1110mm*910mm*1350mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silecner,radiator,control panel |
| Application | Excavator,loader,drilling,roller,Paver,compressor,etc |
