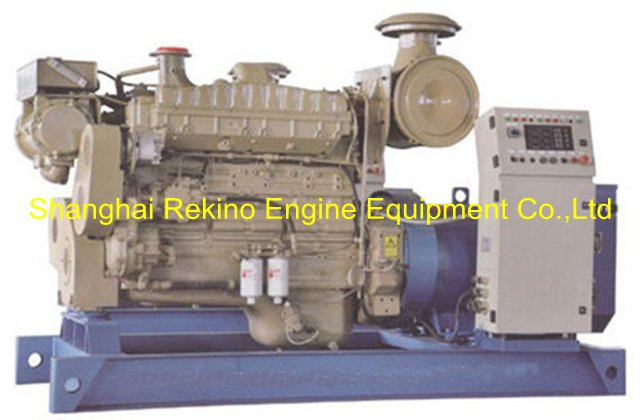

Cummins 180KW 225KVA 50HZ marine generator genset CCFJ180JW

Quantity:
  • CCFJ180JW
  • Cummins

Cummins 180KW  225KVA  50HZ marine generator genset  CCFJ180JW


Type of   Gen-set
Cummins marine   diesel generator
Generator model
CCFJ180JW
Rated Capacity(KVA)225KVA
Rated Power(KW)180KW
Standby power(KW)200KW
Diesel Engine
Cummins   NT855-DM
Alternator
Marathon   MP-H-180-4 or Sunvim SVH314
Engine power (KW)205KW
Cooling Mode
Heat   Exchanger Cooling
Rated Voltage(V)400V
Rated Current(A)325A
Rated Frequency(HZ)50HZ
Power Factor(Lagging)
0.8
Phase & Connection
Three   Phases & Three Wires, Y Connection
Rated Speed(RPM)1500RPM
Fuel Consumption(g/kW.h)205
Starting Mode
Electric   Starting
Weight of Gen-set(KG)2900KG
Overall Dimension (mm)2690*995*1790mm
Certificate
CCS,IMO,BV,etc



Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
