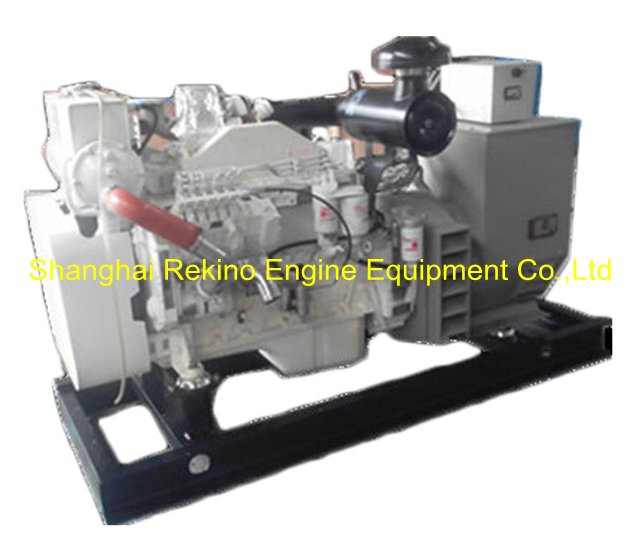

Cummins 100KW 125KVA 50HZ marine generator genset CCFJ100JW 6CT8.3-GM115
| Type of Gen-set | Cummins marine diesel generator | |
| Generator model | CCFJ100JW | |
| Rated Capacity | (KVA) | 125KVA |
| Rated Power | (KW) | 100KW |
| Standby power | (KW) | 110KW |
| Diesel Engine | Cummins 6CT8.3-GM115 | |
| Alternator | Marathon MP-H-100-4 or Sunvim SVH274 | |
| Engine power | (KW) | 115KW |
| Cooling Mode | Heat Exchanger Cooling | |
| Rated Voltage | (V) | 380 / 400 / 415 |
| Rated Current | (A) | 180 |
| Rated Frequency | (HZ) | 50HZ |
| Power Factor(Lagging) | 0.8 | |
| Phase & Connection | Three Phases & Three Wires, Y Connection | |
| Rated Speed | (RPM) | 1500 |
| Fuel Consumption | (g/kW.h) | ≤205 |
| Starting Mode | Electric Starting | |
| Weight of Gen-set | (KG) | 1650KG |
| Overall Dimension | (mm) | 2380*800*1370mm |
| Certificate | CCS,IMO,BV,etc |
