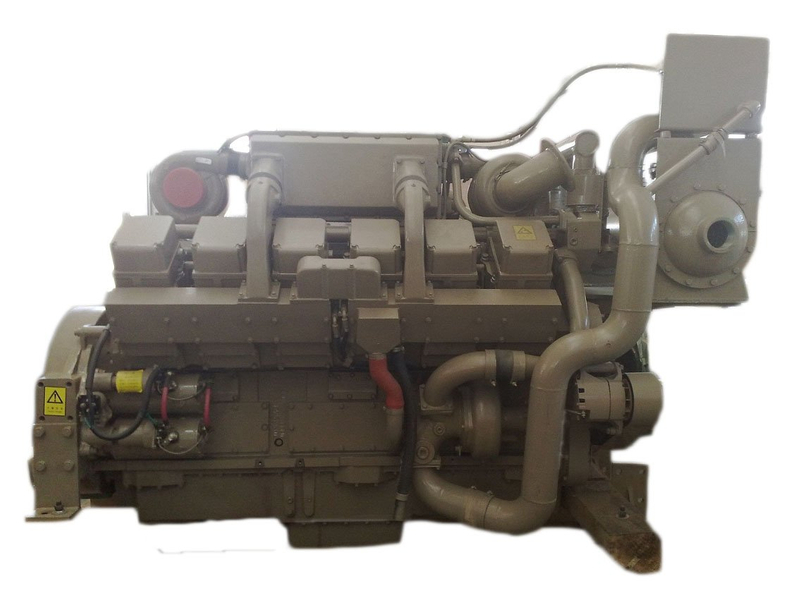

CCEC Cummins KTA38-M1 KTA38-M1000 (1000HP 1800RPM ) marine propulsion diesel engine motor
CCEC Cummins KTA38-M1 KTA38-M1000 (1000HP 1800RPM ) marine propulsion diesel engine motor
Share to:

CCEC Cummins KTA38-M1 KTA38-M1000 (1000HP 1800RPM ) marine propulsion diesel engine motor

Quantity:
Inquire Add to Basket

  • KTA38-M1 KTA38-M1000
  • CCEC Cummins

CCEC Cummins KTA38-M1 KTA38-M1000  (1000HP 1800RPM ) marine propulsion diesel engine motor


Engine   modelKTA38-M1(KTA38-M1000)
StyleMarine diesel engine   (Main engine)
TypeV type, 12-Cylinder,   4-Stroke, 4-Valve
AspirationTurbocharged
Bore x stroke159x159mm
Displacement38 L
Compression   Ratio13.8
Rating typeCON
Power / Speed746 KW (1000HP)   /1800RPM
RotationCounter clockwise   facing flywheel
Fuel   Consumption202g/kw.h
Fuel systemPT
Dimension2400*1800*2000mm
Dry weight3880KG
EmissionCCS +IMO
Matching   gearbox  AdvanceHC400,HCD400A,HCT400A,etc
Matching   gearbox  FADAJ400A,JD400A,JT400A,etc
ApplicationFishing boat
