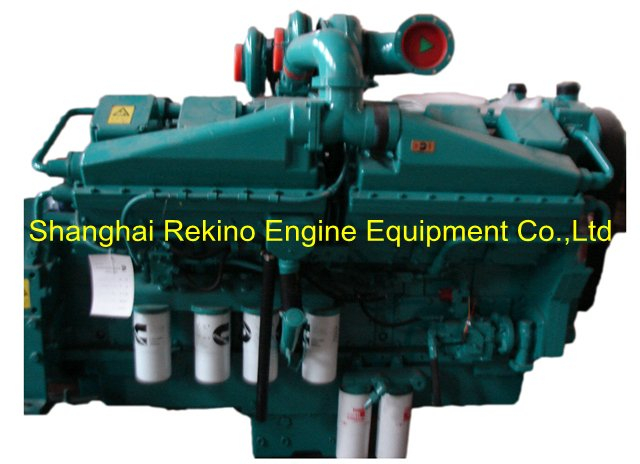

CCEC Cummins KTA38-G2A G Drive diesel engine motor for genset generator 813KW 1500RPM (915KW 1800RPM)

Quantity:
  • KTA38-G2A
  • CCEC Cummins

CCEC Cummins KTA38-G2A  G Drive diesel engine motor for genset generator  813KW 1500RPM  (915KW 1800RPM)


Engine   modelKTA38-G2A   (813KW/915KW)
Engine styleCummins G-drive   diesel engine for generator
TypeV type,4 stroke,water   cooling,Direct injection
Cylinders No.12 Cylinders
Intake systemTurbocharged   Aftercooled
Bore X Stroke159x159mm
Displacement38L
Compression   ratio14.5:1
Fuel systemPT STC
Governor typeEFC
Governor ratio3%
RotationClocewise (face to   flywheel)
Prime   Unlimited time power (Engine)813KW/1500RPM  915KW/1800RPM
Standby power   (Engine)895KW/1500RPM  1007KW/1800RPM
Prime   Unlimited time power (Generator)728KW   (910KVA) 50HZ 800KW(1000KVA)60HZ
Standby power   (Generator)800KW (1000KVA) 50HZ   900KW(1125KVA) 60HZ
Cooling wayPositive water   cooling cycle
Lubricant   capacity114L
Coolant   capacity with radiator194L
Electrical   system24V
Fuel   Consumption210g/kw.h
Wet weight3954KG
Overall   Diemension(L*W*H)2260mm*1339mm*2332mm
RadiatorRadiator and fan are   additional
ApplicationDiesel generator, water pump set



Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
