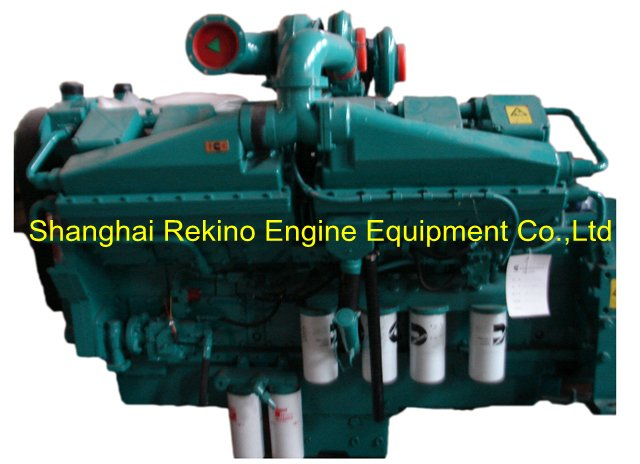

CCEC Cummins KTA38-G2 G Drive diesel engine motor for genset generator 664KW 1500RPM (809KW 1800RPM)
| Engine model | KTA38-G2 (664KW 1500RPM/809KW 1800RPM) |
| Engine style | Cummins G-drive diesel engine for generator |
| Type | V type,4 stroke,water cooling,Direct injection |
| Cylinders No. | 12 Cylinders |
| Intake system | Turbocharged Aftercooled |
| Bore X Stroke | 159x159mm |
| Displacement | 38L |
| Compression ratio | 14.5:1 |
| Fuel system | PT STC |
| Governor type | EFC |
| Governor ratio | 3% |
| Rotation | Clocewise (face to flywheel) |
| Prime Unlimited time power (Engine) | 664KW/1500RPM 809KW/1800RPM |
| Standby power (Engine) | 731KW/1500RPM 895KW/1800RPM |
| Prime Unlimited time power (Generator) | 600KW (750KVA) 50HZ 725KW/(906KVA) 60HZ |
| Standby power (Generator) | 660KW (825KVA) 50HZ 800KW/(1000KVA) 60HZ |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 114L |
| Coolant capacity with radiator | 194L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Wet weight | 3954KG |
| Overall Diemension(L*W*H) | 2260mm*1339mm*2332mm |
| Radiator | Radiator and fan are additional |
| Application | Diesel generator, water pump set |
