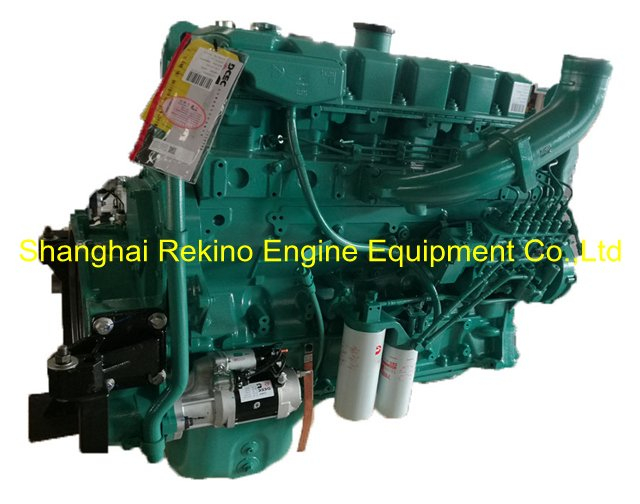

DCEC Cummins 6ZTAA13-G4 G drive diesel engine motor for generator genset 400KW 1500RPM-1800RPM
| Engine model | 6ZTAA8.9-G3 (400KW) |
| Engine style | Cummins G-drive diesel engine for generator |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Charge Air Cooler |
| Bore X Stroke | 130x163mm |
| Displacement | 13L |
| Compression ratio | 17:01 |
| Fuel system | BYC PB type injection pump + RSV governor |
| Governor type | Electric |
| Governor ratio | 3% |
| Rotation | Clocewise (face to flywheel) |
| Prime Unlimited time power (Engine) | 400KW/1500RPM 400KW/1800RPM |
| Standby power (Engine) | 415KW/1500RPM 415KW/1800RPM |
| Prime Unlimited time power (Generator) | 380KW (475KVA) 50HZ 380KW (475KVA)60HZ |
| Standby power (Generator) | 395KW (495KVA) 50HZ 395KW (495KVA)60HZ |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 45.2L |
| Coolant capacity | 73.1L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 1530KG |
| Wet weight | 1600KG |
| Overall Diemension(L*W*H) | 2180mm*1360mm*1605mm |
| Radiator | With radiator and fan and pipes |
| Application | Diesel generator, water pump set |
