You are here: Home » Products » Cummins G drive engine » 6ZT G Drive engine » DCEC Cummins 6ZTAA13-G2 G drive diesel engine motor for generator genset 390KW 1500RPM-1800RPM
Share to:

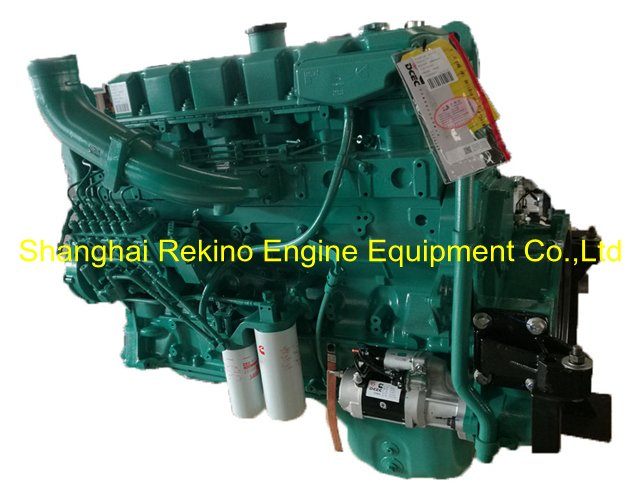

DCEC Cummins 6ZTAA13-G2 G drive diesel engine motor for generator genset 390KW 1500RPM-1800RPM

Quantity:
  • 6ZTAA13-G2
  • DCEC Cummins

DCEC Cummins 6ZTAA13-G2 G drive diesel engine motor for generator genset 390KW  1500RPM-1800RPM


Engine   model6ZTAA8.9-G2 (390KW)
Engine styleCummins G-drive  diesel engine for generator
TypeIn-line,4   stroke,water cooling,Direct injection
Cylinders No.6 Cylinders
Intake systemTurbocharged Charge   Air Cooler
Bore X Stroke130x163mm
Displacement13L
Compression   ratio17:01
Fuel systemBYC PB type injection pump + RSV   governor
Governor typeElectric
Governor   ratio3%
RotationClocewise (face to   flywheel)
Prime   Unlimited time power (Engine)390KW/1500RPM  390KW/1800RPM
Standby power   (Engine)415KW/1500RPM  415KW/1800RPM
Prime   Unlimited time power (Generator)375KW   (469KVA) 50HZ    377KW (471KVA)60HZ
Standby power   (Generator)396KW (495KVA)   50HZ  398KW (497KVA)60HZ
Cooling wayPositive water   cooling cycle
Lubricant   capacity45.2L
Coolant   capacity73.1L
Electrical   system24V
Fuel   Consumption210g/kw.h
Net   Weight 1530KG
Wet weight1600KG
Overall   Diemension(L*W*H)2180mm*1360mm*1605mm
RadiatorWith radiator and fan   and pipes
ApplicationDiesel generator, water pump set
