CCFJ90JW 6BTA5.9-GM100
Cummins

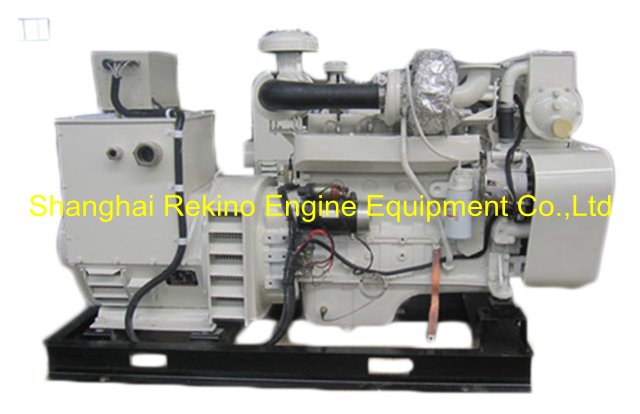

Cummins 90KW 113KVA 50HZ marine generator genset CCFJ90JW 6BTA5.9-GM100
| Type of Gen-set | Cummins marine diesel generator | |
| Generator model | CCFJ90JW | |
| Rated Capacity | (KVA) | 113KVA |
| Rated Power | (KW) | 90KW |
| Standby power | (KW) | 100KW |
| Diesel Engine | Cummins 6BTA5.9-GM100 | |
| Alternator | Marathon MP-H-90-4 or Sunvim SVH274 | |
| Engine power | (KW) | 100KW |
| Cooling Mode | Heat Exchanger Cooling | |
| Rated Voltage | (V) | 400V |
| Rated Current | (A) | 162A |
| Rated Frequency | (HZ) | 50HZ |
| Power Factor(Lagging) | 0.8 | |
| Phase & Connection | Three Phases & Three Wires, Y Connection | |
| Rated Speed | (RPM) | 1500RPM |
| Fuel Consumption | (g/kW.h) | ≤205 |
| Starting Mode | Electric Starting | |
| Weight of Gen-set | (KG) | 1300KG |
| Overall Dimension | (mm) | 2380*800*1370mm |
| Certificate | CCS,IMO,BV,etc |
