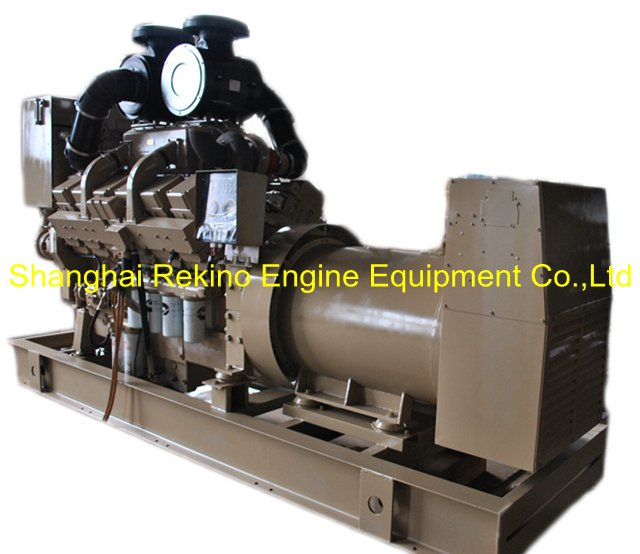

Cummins 800KW 1000KVA 50HZ marine generator genset CCFJ800JW KTA38-DM
| Type of Gen-set | Cummins marine diesel generator | |
| Generator model | CCFJ800JW | |
| Rated Capacity | (KVA) | 1000KVA |
| Rated Power | (KW) | 800KW |
| Standby power | (KW) | 880KW |
| Diesel Engine | Cummins KTA38-DM | |
| Alternator | Marathon MX-H-830-4 or Sunvim SVH404 | |
| Engine power | (KW) | 880KW |
| Cooling Mode | Heat Exchanger Cooling | |
| Rated Voltage | (V) | 400V |
| Rated Current | (A) | 1443A |
| Rated Frequency | (HZ) | 50HZ |
| Power Factor(Lagging) | 0.8 | |
| Phase & Connection | Three Phases & Three Wires, Y Connection | |
| Rated Speed | (RPM) | 1500RPM |
| Fuel Consumption | (g/kW.h) | ≤205 |
| Starting Mode | Electric Starting | |
| Weight of Gen-set | (KG) | 7000KG |
| Overall Dimension | (mm) | 4100*1500*2500mm |
| Certificate | CCS,IMO,BV,etc |
Cummins 800KW 1000KVA 50HZ marine generator genset CCFJ800JW KTA38-DM
| Type of Gen-set | Cummins marine diesel generator | |
| Generator model | CCFJ800JW | |
| Rated Capacity | (KVA) | 1000KVA |
| Rated Power | (KW) | 800KW |
| Standby power | (KW) | 880KW |
| Diesel Engine | Cummins KTA38-DM | |
| Alternator | Marathon MX-H-830-4 or Sunvim SVH404 | |
| Engine power | (KW) | 880KW |
| Cooling Mode | Heat Exchanger Cooling | |
| Rated Voltage | (V) | 400V |
| Rated Current | (A) | 1443A |
| Rated Frequency | (HZ) | 50HZ |
| Power Factor(Lagging) | 0.8 | |
| Phase & Connection | Three Phases & Three Wires, Y Connection | |
| Rated Speed | (RPM) | 1500RPM |
| Fuel Consumption | (g/kW.h) | ≤205 |
| Starting Mode | Electric Starting | |
| Weight of Gen-set | (KG) | 7000KG |
| Overall Dimension | (mm) | 4100*1500*2500mm |
| Certificate | CCS,IMO,BV,etc |
