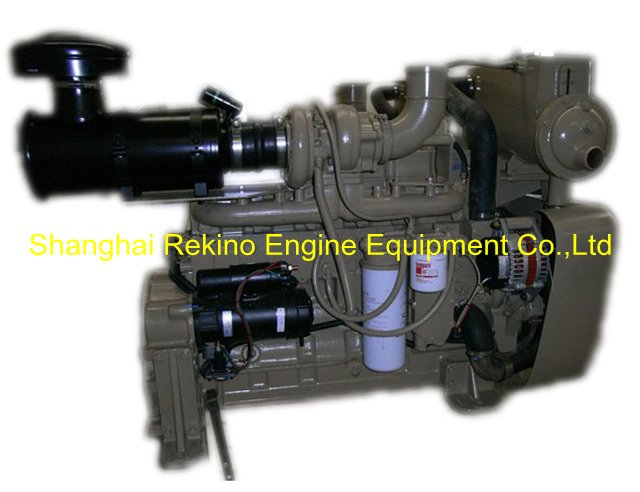

Cummins 6CTA8.3-M205 (205HP 2328RPM ) marine propulsion diesel engine motor

  • 6CTA8.3-M205
  • DCEC Cummins

Cummins 6CTA8.3-M205  (205HP 2328RPM ) marine propulsion diesel engine motor

Engine   model6CTA8.3-M205   (205HP 2328RPM)
Engine typeCummins marine propulsion diesel   main engine
TypeIn-line,4 stroke,   water cooling,Direct injection
Intake systemTurbocharger and   aftercooler
Bore X Stroke114x135 mm
Fuel systemBYC PB injection pump   + R801 governor
Governor   ratio5%
RotationClocewise (face to   flywheel)
Rated power151KW/2328RPM   (205HP/2328RPM)
Max   power 166KW/2400RPM   (226HP/2400RPM)
Electrical   system24V/12V
Fuel   Consumption247g/kw.h
Net   Weight 604KG
Overall   Diemension(L*W*H)1360mm*780mm*988mm
Matching with   gearbox ADVANCE 120C,MV100A,HCA138,HCQ138,MB242
Matching with   gearbox FADA120C,J135B,FD242
Option   partsHeating exchanger
Air filter, exhaust pipe, bellow, silecner
Air starter, double wire solenoid valve,
Double wire starter and alternator
4 supports
Double sensors
Control panel
ApplicationPassenger   boat,Fishing boat,Luxury boat,Curiser,etc


Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
