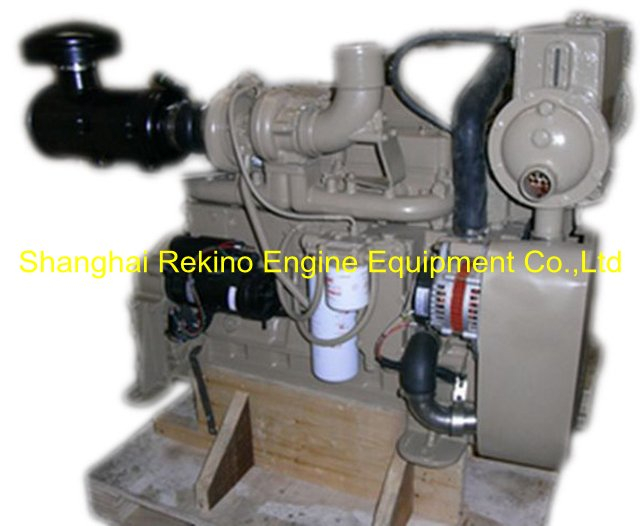

Cummins 6BTA5.9-M150 (150HP 2200RPM ) marine propulsion diesel engine motor

Quantity:
  • 6BTA5.9-M150
  • DCEC Cummins

Cummins 6BTA5.9-M150  (150HP 2200RPM ) marine propulsion diesel engine motor


Engine   model6BTA5.9-M150   (2200RPM)
Engine styleCummins marine diesel main engine
TypeIn-line,4 stroke,   water cooling,Direct injection
Intake systemTurbocharger and  aftercooler
Bore X Stroke102x120 mm
Displacement5.9L
Fuel systemWuxi Weifu AD injection pump + RSV governor
Governor   ratio8%
RotationClocewise (face to   flywheel)
Rated power110KW/2200RPM   (150HP/2200RPM)
Max   power 120KW/2270RPM   (150HP/2270RPM)
Electrical   system24V/12V
Fuel   Consumption227g/kw.h
Net   Weight 443KW
Overall   Diemension(L*W*H)1110mm*750mm*988mm
Matching with   gearbox ADVANCE HC65,120C,MV100A,HCA138,HCQ138
Matching with   gearbox FADAFD120,FD135,J120
CertificateCCS+IMO
ApplationPassenger   boat,Fishing boat,Luxury boat,Curiser,etc
Option   partsHeating exchanger
Air filter, exhaust pipe, bellow, silecner
Air starter, double wire solenoid valve,
Double wire starter and alternator
4 supports
Double sensors
Control panel
