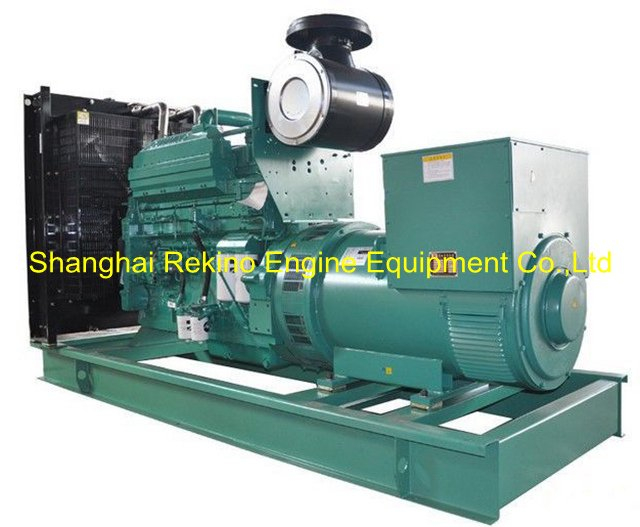

Cummins 480KW 600KVA 50HZ land diesel generator genset (KTAA19-G6)

Availability:
Quantity:
Inquire Add to Basket

  • 480GF

  • Cummins

Cummins 480KW  600KVA  50HZ  land diesel generator genset (KTAA19-G6)


Type Cummins diesel   generator genset
Generator   model480GF
Rated power480KW
Standby   power 528KW
Generator   capacity600KVA
Factor0.8 lag
Frequency50HZ
Voltage400/230V
Current863A
Phase /   connection3 phase 4 wire
Generator   Weight4200KG
Size 3750*1960*2360（mm）
Engine Cummins KTAA19-G6
Rated power520KW
Standby   power 570KW
Bore*stroke159*159 (mm)
Speed1500RPM
Alternator Marathon MP-480-4
ExcitationBrushless &   self-excited
Insulation H
ProtectionIP22/23
optional   alternator brand Stamford, Leroy   Somer, Farady,etc,
