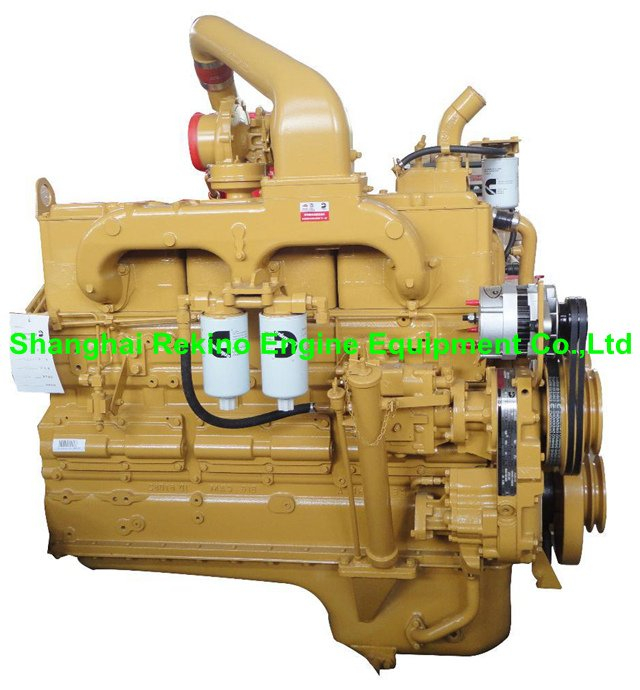

CCEC Cummins NTA855-C335 construction diesel engine motor (335HP)
| Engine model | NTA855-C335 (335HP) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Aftercooler |
| Bore X Stroke | 140x152mm |
| Displacement | 14L |
| Compression ratio | 15 |
| Fuel system | PT fuel system |
| Governor ratio | 5% |
| Rated power/Speed | 250KW/335HP/2100RPM |
| Peak Torque | 1363N.m/1400RPM |
| Rotation | Closewise (face to flywheel) |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 1345Kg |
| Gross weight | 1400 Kg |
| Overall Diemension(L*W*H) | 1389mm*914mm*1298mm |
| Package size(L*W*H) | 1690mm*950mm*1600mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Mining truck,Wheel loader, Air compressor, etc |
CCEC Cummins NTA855-C335 construction diesel engine motor (335HP)
| Engine model | NTA855-C335 (335HP) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Aftercooler |
| Bore X Stroke | 140x152mm |
| Displacement | 14L |
| Compression ratio | 15 |
| Fuel system | PT fuel system |
| Governor ratio | 5% |
| Rated power/Speed | 250KW/335HP/2100RPM |
| Peak Torque | 1363N.m/1400RPM |
| Rotation | Closewise (face to flywheel) |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 1345Kg |
| Gross weight | 1400 Kg |
| Overall Diemension(L*W*H) | 1389mm*914mm*1298mm |
| Package size(L*W*H) | 1690mm*950mm*1600mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Mining truck,Wheel loader, Air compressor, etc |
