NT855-C280
CCEC Cummins

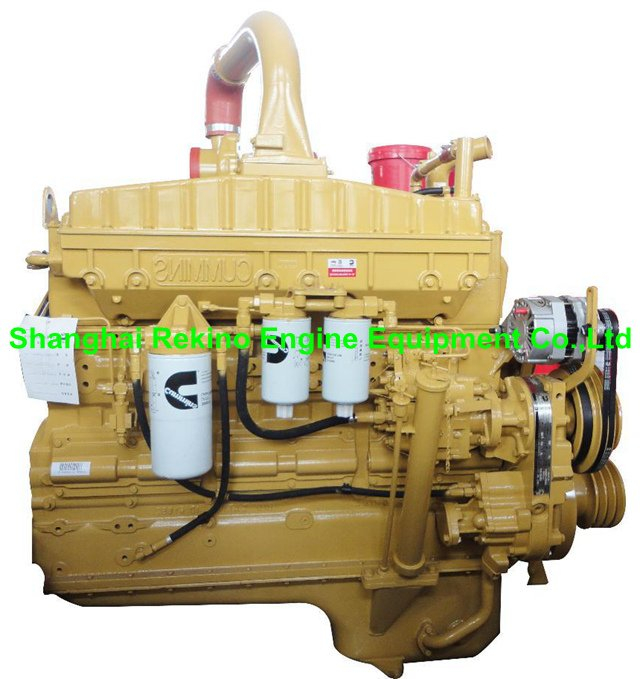

CCEC Cummins NT855-C280 construction diesel engine motor (139-209KW)
| Engine model | Power(KW)/Speed(RPM) | Torque (N.m)/Speed(RPM) | Intake way |
| NT855-C280 | 138/1850 | 788/1250 | T |
| 142/1850 | 877/1250 | T | |
| 149/1850 | 923/1250 | T | |
| 164/1850 | 1015/1250 | T | |
| 175/1800 | 1078/1250 | T | |
| 179/2000 | 1050/1400 | T | |
| 184/1900 | 1061/1300 | T | |
| 185/2100 | 1097/1500 | T | |
| 187/1850 | 1131/1200 | T | |
| 200/1800 | 1139/1500 | T | |
| 209/2100 | 1139/1500 | T |
| Engine model | NT855-C280 (138-209KW) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged |
| Bore X Stroke | 140x152mm |
| Displacement | 14L |
| Compression ratio | 15 |
| Fuel system | PT fuel system |
| Governor ratio | 5% |
| Rotation | Closewise (face to flywheel) |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 1345Kg |
| Gross weight | 1400 Kg |
| Overall Diemension(L*W*H) | 1389mm*914mm*1298mm |
| Package size(L*W*H) | 1690mm*950mm*1600mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Miner, bulldozer, loader, Air compressor,etc |
