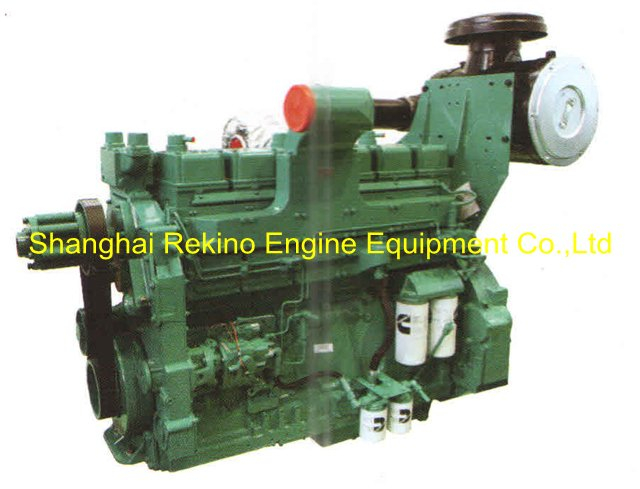

CCEC Cummins KTA19-G4 G Drive diesel engine motor for generator genset 448KW 1500RPM ( 507KW 1800RPM )
| Engine model | KTA19-G4 (448KW 1500RPM/507KW 1800RPM) |
| Engine style | Cummins G-drive diesel engine for generator |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Aftercooler |
| Bore X Stroke | 159x159mm |
| Displacement | 19L |
| Compression ratio | 14.5:1 |
| Fuel system | PT STC |
| Governor type | EFC |
| Governor ratio | 3% |
| Rotation | Clocewise (face to flywheel) |
| Prime Unlimited time power (Engine) | 448KW/1500RPM 507KW/1800RPM |
| Standby power (Engine) | 504KW/1500RPM 563KW/1800RPM |
| Prime Unlimited time power (Generator) | 400KW (500KVA) 50HZ 450KW/(563KVA) 60HZ |
| Standby power (Generator) | 450KW (563KVA) 50HZ 500KW/(625KVA) 60HZ |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 50L |
| Coolant capacity with radiator | 66L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Wet weight | 1927KG |
| Overall Diemension(L*W*H) | 2142mm*1067mm*1733mm |
| Radiator | Radiator and fan are additional |
| Application | Diesel generator, water pump set |
