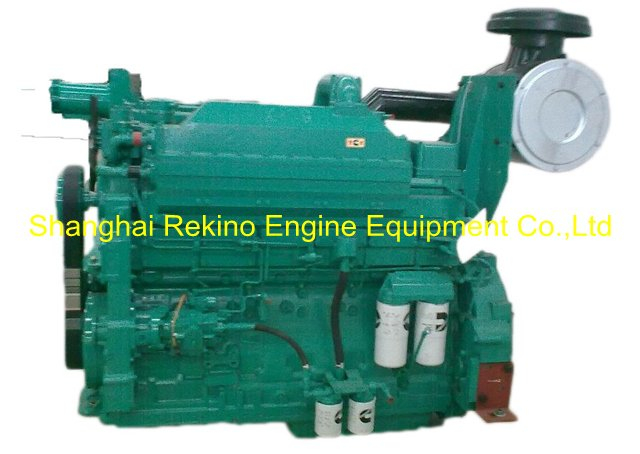

CCEC Cummins KTA19-G2 G Drive diesel engine motor for generator genset 336KW 1500RPM ( 392KW 1800RPM )

  • KTA19-G2
  • CCEC Cummins

CCEC Cummins KTA19-G2  G Drive diesel engine motor  for generator genset  336KW 1500RPM ( 392KW 1800RPM )

Engine   modelKTA19-G2(336KW 1500RPM/392KW 1800RPM)
Engine styleCummins G-drive diesel engine for generator
TypeIn-line,4   stroke,water cooling,Direct injection
Cylinders No.6 Cylinders
Intake systemTurbocharged  Aftercooled
Bore X Stroke159x159mm
Compression   ratio14.5:1
Fuel systemPT STC
Governor typeEFC
Governor ratio3%
RotationClocewise (face to   flywheel)
Prime   Unlimited time power (Engine)336KW/1500RPM  392KW/1800RPM
Standby power   (Engine)369KW/1500RPM  448KW/1800RPM
Prime   Unlimited time power (Generator)  300KW (373KVA) 50HZ  350KW/(438KVA) 60HZ
Standby power   (Generator)  330KW (413KVA) 50HZ  400KW/(500KVA) 60HZ
Cooling wayPositive water   cooling cycle
Lubricant   capacity50L
Coolant   capacity with radiator66L
Electrical   system24V
Fuel   Consumption210g/kw.h
Wet weight1927KG
Overall   Diemension(L*W*H)2142mm*1067mm*1733mm
RadiatorRadiator and fan are   additional
ApplicationDiesel generator, water pump set


Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
