KTA19-C525
CCEC Cummins

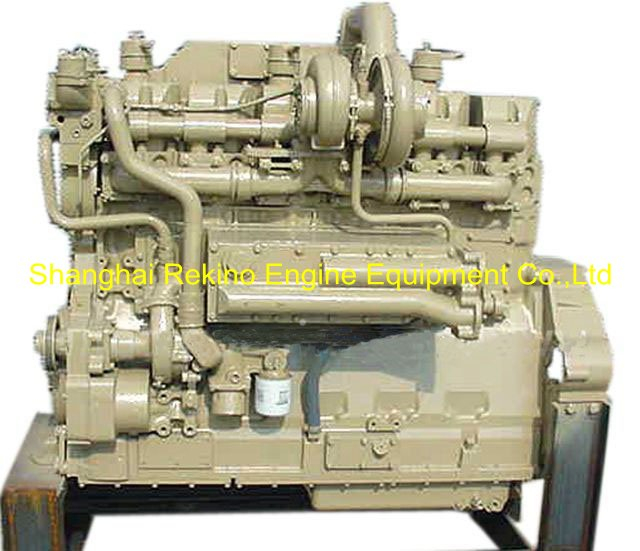

CCEC Cummins KTA19-C525 construction diesel engine motor 336-392KW
| Engine model | Power(KW)/Speed(RPM) | Torque (N.m)/Speed(RPM) | Intake way |
| KTA19-C525 | 336/2000 | 1900/1400 | TA |
| 343/2000 | 1920/1400 | TA | |
| 347/1800 | 2169/1350 | TA | |
| 358/2100 | 2034/1500 | TA | |
| 373/2100 | 1870/1500 | TA | |
| 392/2100 | 2136/1500 | TA | |
| 392/2100 | 2170/1300 | TA | |
| 392/2100 | 2237/1300 | TA |
| Engine model | KTA19-C525 (336-392KW) |
| Engine style | Cummins construction diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and intercooled |
| Bore X Stroke | 159x159mm |
| Displacement | 19L |
| Compression ratio | 13.9 |
| Fuel system | PT fuel system |
| Governor ratio | 5% |
| Rotation | Closewise (face to flywheel) |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 2073Kg |
| Gross weight | 2123 Kg |
| Overall Diemension(L*W*H) | 2151mm*966mm*1704mm |
| Package size(L*W*H) | 2451mm*1300mm*2000mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Bulldozer,Oil mechinary, Mining dumper,drilling rig,etc |
