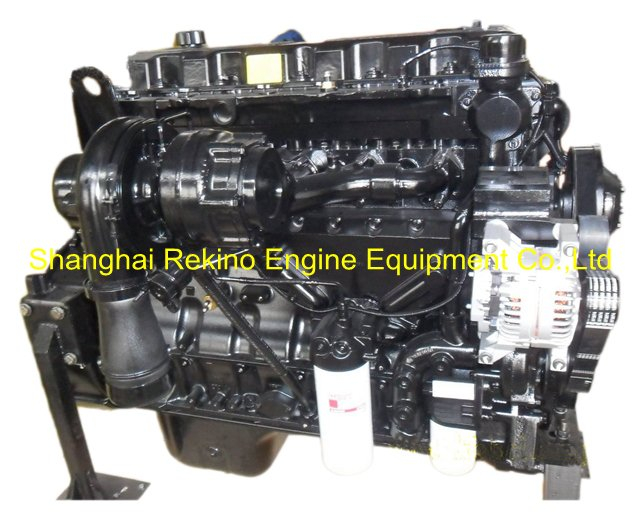

DCEC Cummins QSZ13-C475-30 Construction industrial diesel engine motor 475HP 1900RPM
| Engine model | QSZ13-C475-30 (475HP 1900RPM) |
| Engine style | Cummins construction Industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and Aftercooled |
| Bore X Stroke | 130x163mm |
| Displacement | 13L |
| Fuel system | HPCR |
| Rotation | Closewise (face to flywheel) |
| Rated power | 354KW/475HP/1900RPM |
| Max torque | 2300N.m/1400RPM |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Net Weight | 720KG |
| Overall Diemension(L*W*H) | 1367mm*982mm*1213mm |
| Package size(L*W*H) | 1500mm*1100mm*1400mm |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Emission | China stage III, EU stage IIIA |
| Application | Dumper, Air compressor,etc |
