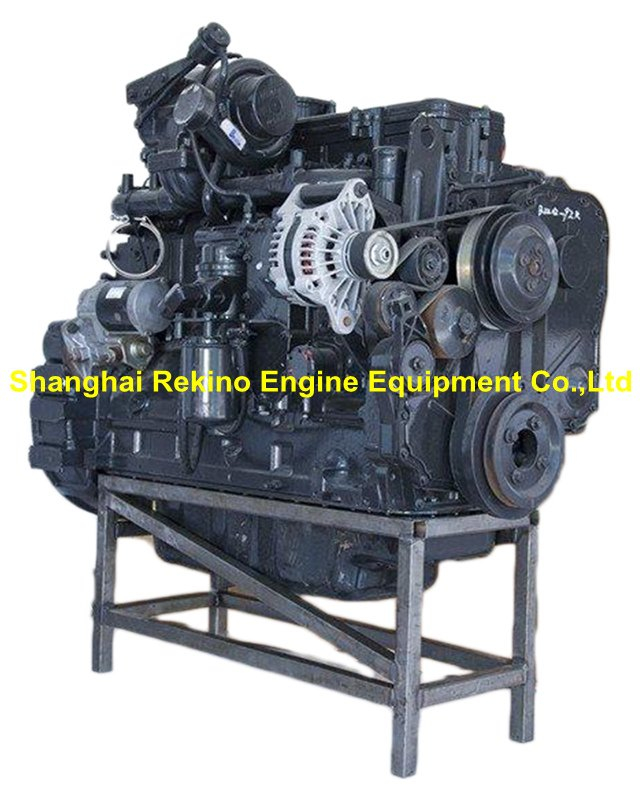

DCEC Cummins QSC8.3-C215-30 Construction diesel engine motor 215HP 2200RPM

Quantity:
  • QSC8.3-C215-30
  • DCEC Cummins

DCEC Cummins QSC8.3-C215-30 Construction diesel engine motor 215HP 2200RPM


Engine   modelQSC8.3-C215-30 (215HP 2200RPM)
Engine styleCummins construction industrial diesel engine
TypeIn-line,4 stroke,water cooling,Direct injection
Cylinders No.6 Cylinders
Intake systemTurbocharged and Aftercooled
Bore X Stroke114x135mm
Displacement8.3L
Compression   ratio17.3:1
Fuel systemCommon rail
RotationClosewise (face to   flywheel)
Rated power160KW/2200RPM   (215HP/2200RPM)
Max torque980N.m/1350RPM
Idle speed900RPM
Electrical   system24V/12V
Net   Weight 627KG
Gross weight750KG
Overall   Diemension(L*W*H)1560mm*900mm*1400mm
Package   size(L*W*H)1700mm*1100mm*1600mm
Max.Continuous   Running Altitude2000m
EmissionChina Stage III,
Option   parts Air filter,exhaust   pipe,bellow,silencer,radiator,control panel,etc
ApplicationExcavator,Wheel   loader,Drilling machinery,etc



Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
