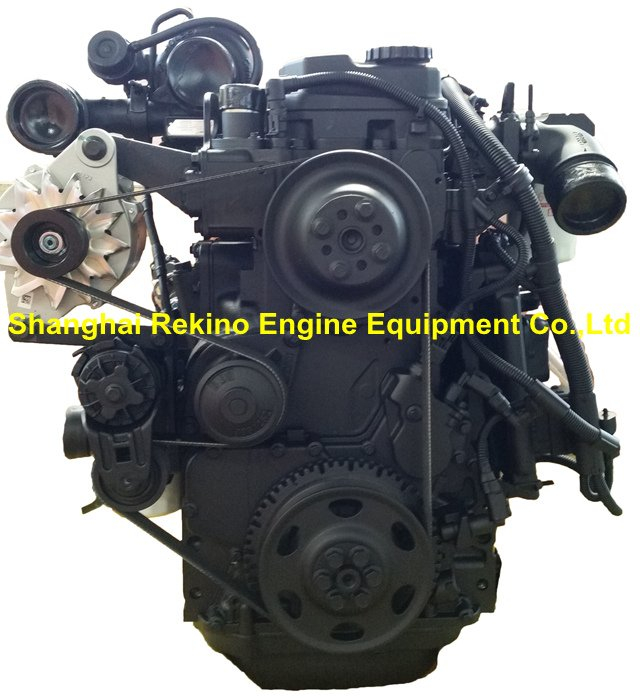

DCEC Cummins QSB4.5-C110-II construction industrial diesel engine motor 110HP 2200RPM
Engine model | QSB4.5-C110-II (110HP 2200RPM ) |
Engine style | Cummins construction Industrial diesel engine |
Type | In-line,4 stroke,water cooling,Direct injection |
Cylinders No. | 4 Cylinders |
Intake system | Turbocharged and Air-air intercooler |
Bore X Stroke | 107x124mm |
Displacement | 4.5L |
Compression ratio | 16.6 |
Fuel system | HPCR |
Rotation | Closewise (face to flywheel) |
Rated power | 82KW/110HP/2200RPM |
Max torque | 488N.m/1500RPM |
Idle speed | 750RPM |
Electrical system | 24V/12V |
Net Weight | 371KG |
Overall Diemension(L*W*H) | 900mm*702mm*880mm |
Package size(L*W*H) | 1100mm*850mm*1000mm |
Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
Emission | China stage II, Euro II |
Application | Wheel loader, hydraulic excavator, Motor grader,Air compressor,etc |
