6LTAA9.5-C360
DCEC Cummins

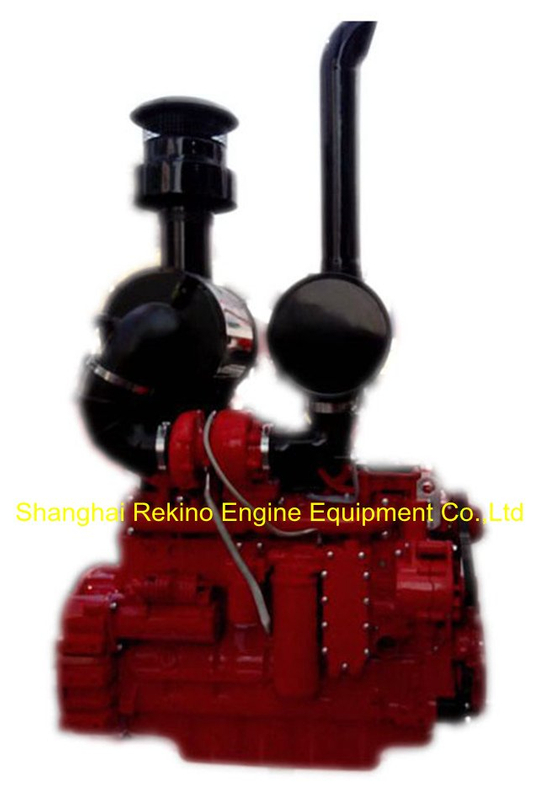

DCEC Cummins 6LTAA9.5-C360 construction industrial diesel engine motor 360HP 2200RPM
| Engine model | 6CTAA9.5-C360-II |
| Engine style | Cummins construction diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and Air-air intercooler |
| Bore X Stroke | 116.5x148mm |
| Displacement | 9.5L |
| Compression ratio | 17 |
| Fuel system | PW2000 injection pump + RSV governor |
| Governor ratio | 5% |
| Rotation | Closewise (face to flywheel) |
| Rated power | 264KW/2200RPM (360HP/2200RPM) |
| Max torque | 1480N.m/1400RPM |
| Idle speed | 900RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 224g/kw.h |
| Net Weight | 740KG |
| Gross weight | 850KG |
| Overall Diemension(L*W*H) | 1560mm*900mm*1200mm |
| Package size(L*W*H) | 1700mm*1100mm*1400mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Dumper, air compressor, paver,drilling machine,crane,etc |
