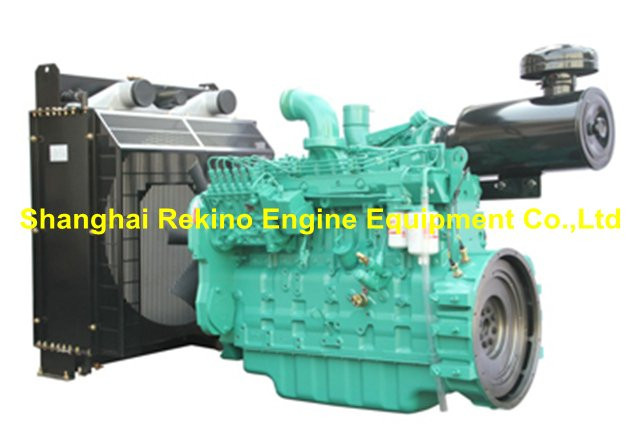

DCEC Cummins 6CTA8.3-G2 G drive diesel engine motor for generator genset 183KW 1500RPM (190KW 1800RPM)
| Engine model | 6CTAA8.3-G2 (183KW 1500RPM/190KW 1800RPM) |
| Engine style | Cummins G-drive diesel engine for generator |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Charge Air Cooler |
| Bore X Stroke | 114x145mm |
| Displacement | 8.3L |
| Compression ratio | 17.3:1 |
| Fuel system | BYC PB type injection pump + RSV governor |
| Governor type | Electric |
| Governor ratio | 3% |
| Rotation | Clocewise (face to flywheel) |
| Prime Unlimited time power (Engine) | 183KW/1500RPM 190KW/1800RPM |
| Standby power (Engine) | 203KW/1500RPM 210KW/1800RPM |
| Prime Unlimited time power (Generator) | 160KW (200KVA) 50HZ 168KW(210KVA)60HZ |
| Standby power (Generator) | 172KW (215KVA) 50HZ 184KW(230KVA)60HZ |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 27.6L |
| Coolant capacity | 33.5L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Net Weight | 800KG |
| Wet weight | 900KG |
| Overall Diemension(L*W*H) | 1625mm*790mm*1265mm |
| Radiator | With radiator and fan and pipes |
| Application | Diesel generator, water pump set |
