6BTA5.9-C165
DCEC Cummins

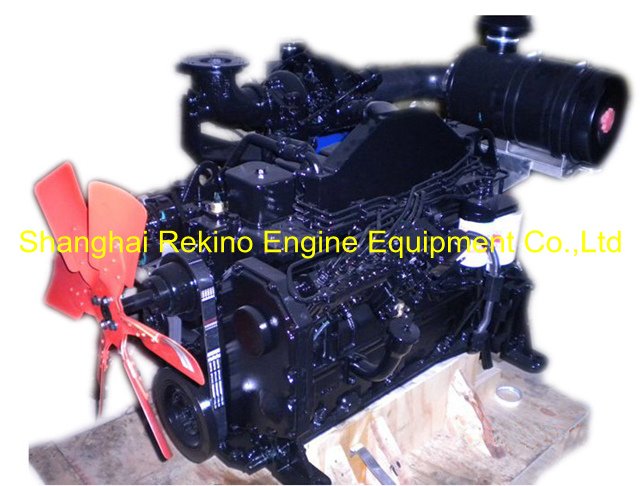

DCEC Cummins 6BTA5.9-C165 Construction diesel engine motor 165HP 2200RPM
| Engine model | 6BTA5.9-C165 (165HP 2200RPM) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and Aftercooled |
| Bore X Stroke | 102x120mm |
| Displacement | 5.9L |
| Compression ratio | 17.3:1 |
| Fuel system | BYC PB injection pump + RSV governor |
| Governor ratio | 5% |
| Rotation | Clocewise (face to flywheel) |
| Rated power | 123KW/2200RPM (165HP/2200RPM) |
| Max torque | 694N.m/1500RPM |
| Idle speed | 750RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 228g/kw.h |
| Net Weight | 443KG |
| Gross weight | 550KG |
| Overall Diemension(L*W*H) | 1110mm*750mm*988mm |
| Package size(L*W*H) | 1310mm*900mm*1400mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silecner,radiator,control panel,etc |
| Application | Excavator, Wheel loader,Rig,Roller,Truck crane,motor grader,Milling,Air compressor,etc |
