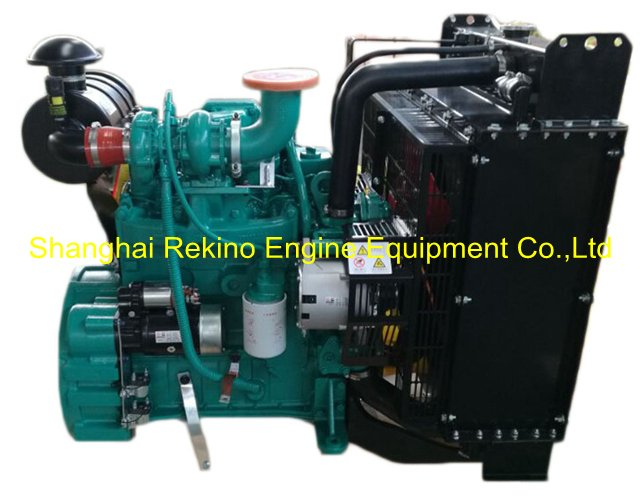

DCEC Cummins 4BTA3.9-G1 G drive diesel engine for generator genset 58KW 1500RPM

  • 4BTA3.9-G1
  • DCEC Cummins

DCEC Cummins 4BTA3.9-G1 G drive diesel engine for generator genset  58KW 1500RPM

Engine   model4BTA3.9-G1 58KW
Engine styleCummins G-drive  diesel engine for generator
TypeIn-line,4  stroke,water cooling,Direct injection
Cylinders No.4 Cylinders
Intake systemTurbocharged and aftercooled
Bore X Stroke102x120mm
Compression   ratio16.5:1
Fuel systemBYC A4 injection pump   + RSV governor
Governor typeMechanical
Governor   ratio6%
RotationClocewise (face to   flywheel)
Prime   Unlimited time power (Engine)58KW/1500RPM
Standby power   (Engine)64KW/1500RPM
Prime   Unlimited time power (Generator)52KW (65KVA) 50HZ
Standby power   (Generator)56KW (70KVA) 50HZ
Cooling wayPositive water   cooling cycle
Lubricant   capacity11L
Coolant   capacity19.8L
Electrical   system24V
Fuel   Consumption230g/kw.h
Net   Weight 355KG
Wet weight375KG
Overall   Diemension(L*W*H)765mm*582mm*908mm
Package   size(L*W*H)1080mm*625mm*1085mm
ApplicationSmall generator,   water pump set,Air compressor
AccessoryAir filter, Radiator,   Pipe,
OptionalControl panel,   Sliencer,etc.


Rekino Cummins

       Shanghai Rekino Engine Equipment Co.,Ltd is a professional diesel engine suplier. Cummins series engine are our main product. Rekino can provide all series Chinese Cummins engines, from 20HP to 2000HP. including DCEC, CCEC, XCEC, FOTON Cummins,and Guangxi Cummins industrial power engines. production kinds include, 4BTM, 6BT,6CT 6LT, QSB4.5, QSB6.7,QSL8.9,QSM11, M11, NT855, KTA19, KTA38,KTA50, QSK19,ISM11,ISL8.9,ISB4.5, ISB5.9, ISL9.5,ISZ13,ISF2.8,ISF3.8,ISG11,ISG12,etc.
