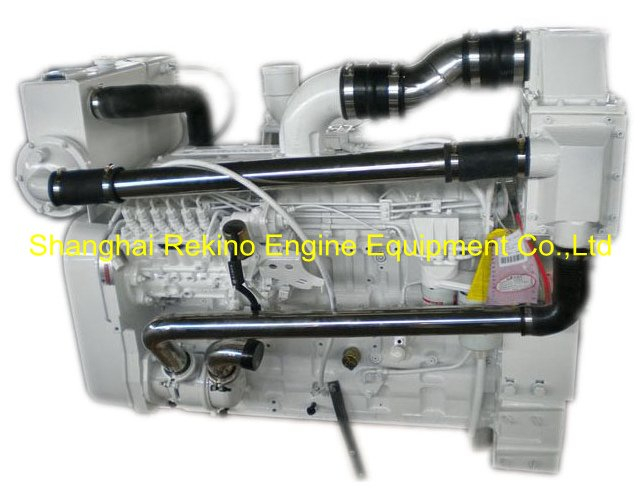

Cummins 6LTAA8.9-M315 (315HP 2134RPM ) marine propulsion diesel engine motor

Quantity:
  • 6LTAA8.9-M315
  • DCEC Cummins

Cummins 6LTAA8.9-M315  (315HP 1800RPM ) marine propulsion diesel engine motor


Engine   model6LTAA8.9-M315 (315HP 2134RPM)
Engine typeCummins marine propulsion diesel main engine
TypeIn-line,4 stroke,   water cooling,Direct injection
Intake systemTurbocharger and CAC
Bore X Stroke114x145 mm
Displacement8.9L
Fuel systemBOSCH P7100 injection   pump+ RSV-K+GAC governor
Governor   ratio5%
RotationClocewise (face to   flywheel)
Rated power230KW/2134RPM (315HP/2134RPM)
Max   power 253KW/2200RPM (345HP/2200RPM)
Electrical   system24V/12V
Fuel   Consumption210g/kw.h
Net   Weight 650KG
Overall   Diemension(L*W*H) 1400mm*800mm*1040mm
Matching with   gearbox ADVANCE HCC200,HC201,MB270A
Matching with   gearbox FADAFD270,FD300
CertificateCCS+IMO
Option   partsHeating exchanger
Air filter, exhaust pipe, bellow, silecner
Air starter, double wire solenoid valve,
Double wire starter and alternator
4 supports
Double sensors
Control panel
ApplicationFishing boat,Curiser,Tugboat,working boat,etc
