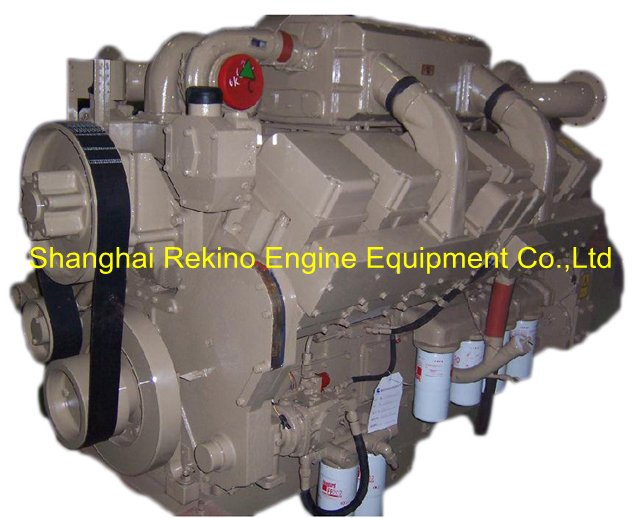

Chongqing CCEC Cummins KT38-P1000 Stationary P type pump diesel engine motor 1000HP 1800RPM
| Engine model | KT38-P1000 (1000HP/1800RPM) |
| Engine style | Cummins P type diesel engine for water pump power unit |
| Type | V type,4 stroke,water cooling,Direct injection |
| Cylinders No. | 12 Cylinders |
| Intake system | Turbocharged |
| Bore X Stroke | 159x159mm |
| Displacement | 38L |
| Compression ratio | 14.5:1 |
| Fuel system | PTG-VS |
| Rotation | Clocewise (face to flywheel) |
| Rated power (KW/HP/RPM) | 746KW /1000HP/1800RPM |
| Peak torque (N.m/rpm) | / |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 114L |
| Coolant capacity with radiator | 194L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Wet weight | 3954KG |
| Overall Diemension(L*W*H) | 2260mm*1339mm*2332mm |
| Radiator | Radiator and fan are additional |
| Application | Water pump set, Fire pump, Sandy pump,mining pump,etc |
Chongqing CCEC Cummins KT38-P1000 Stationary P type pump diesel engine motor 1000HP 1800RPM
| Engine model | KT38-P1000 (1000HP/1800RPM) |
| Engine style | Cummins P type diesel engine for water pump power unit |
| Type | V type,4 stroke,water cooling,Direct injection |
| Cylinders No. | 12 Cylinders |
| Intake system | Turbocharged |
| Bore X Stroke | 159x159mm |
| Displacement | 38L |
| Compression ratio | 14.5:1 |
| Fuel system | PTG-VS |
| Rotation | Clocewise (face to flywheel) |
| Rated power (KW/HP/RPM) | 746KW /1000HP/1800RPM |
| Peak torque (N.m/rpm) | / |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 114L |
| Coolant capacity with radiator | 194L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Wet weight | 3954KG |
| Overall Diemension(L*W*H) | 2260mm*1339mm*2332mm |
| Radiator | Radiator and fan are additional |
| Application | Water pump set, Fire pump, Sandy pump,mining pump,etc |
