NTA855-G2
CCEC Cummins

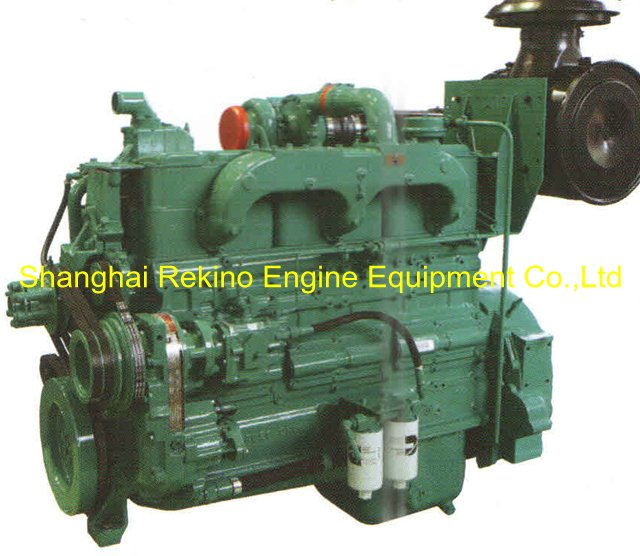

CCEC Cummins NTA855-G2 G Drive diesel engine motor for generator genset 284KW 1500RPM (321KW 1800RPM)
| Engine model | NTA855-G2(284KW/321KW) |
| Engine style | Cummins G-drive diesel engine for generator |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged Aftercooler |
| Bore X Stroke | 140x152mm |
| Displacement | 14L |
| Compression ratio | 14.5:1 |
| Fuel system | PT STC |
| Governor type | EFC |
| Governor ratio | 3% |
| Rotation | Clocewise (face to flywheel) |
| Prime Unlimited time power (Engine) | 284KW/1500RPM 321KW/1800RPM |
| Standby power (Engine) | 313KW/1500RPM 347KW/1800RPM |
| Prime Unlimited time power (Generator) | 250KW (313KVA) 50HZ 275KW/(344KVA) 60HZ |
| Standby power (Generator) | 280KW (350KVA) 50HZ 300KW/(375KVA) 60HZ |
| Cooling way | Positive water cooling cycle |
| Lubricant capacity | 38.6L |
| Coolant capacity | 20.8L |
| Electrical system | 24V |
| Fuel Consumption | 210g/kw.h |
| Wet weight | 1280KG |
| Overall Diemension(L*W*H) | 1592mm*790mm*1364mm |
| Radiator | Radiator and fan are additional |
| Application | Diesel generator, water pump set |
