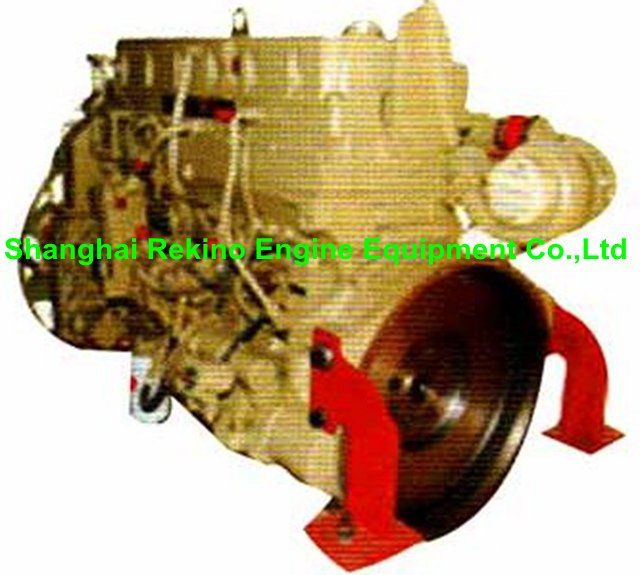

CCEC Cummins M11-C225 Construction diesel engine motor 225HP 2100RPM
| Engine model | M11-C225 (225HP 2100RPM) |
| Engine style | Cummins construction industrial diesel engine |
| Type | In-line,4 stroke,water cooling,Direct injection |
| Cylinders No. | 6 Cylinders |
| Intake system | Turbocharged and Aftercooled |
| Bore X Stroke | 125x 147mm |
| Displacement | 11L |
| Compression ratio | 16 |
| Fuel system | PT fuel system |
| Governor ratio | 5% |
| Rotation | Closewise (face to flywheel) |
| Rated power | 168KW/2100RPM (225HP/2100RPM) |
| Max torque | 1031N.m/1300RPM |
| Idle speed | 900RPM |
| Electrical system | 24V/12V |
| Fuel Consumption | 64.4 L/hr |
| Net Weight | 1120KG |
| Gross weight | 1250KG |
| Overall Diemension(L*W*H) | 1455mm*954mm*1010mm |
| Package size(L*W*H) | 1700mm*1200mm*1300mm |
| Max.Continuous Running Altitude | 2000m |
| Option parts | Air filter,exhaust pipe,bellow,silencer,radiator,control panel,etc |
| Application | Bulldozer, wheel loader,Air compressor etc |
